16 Meter Boom Lift
16 Meter Boom Lift

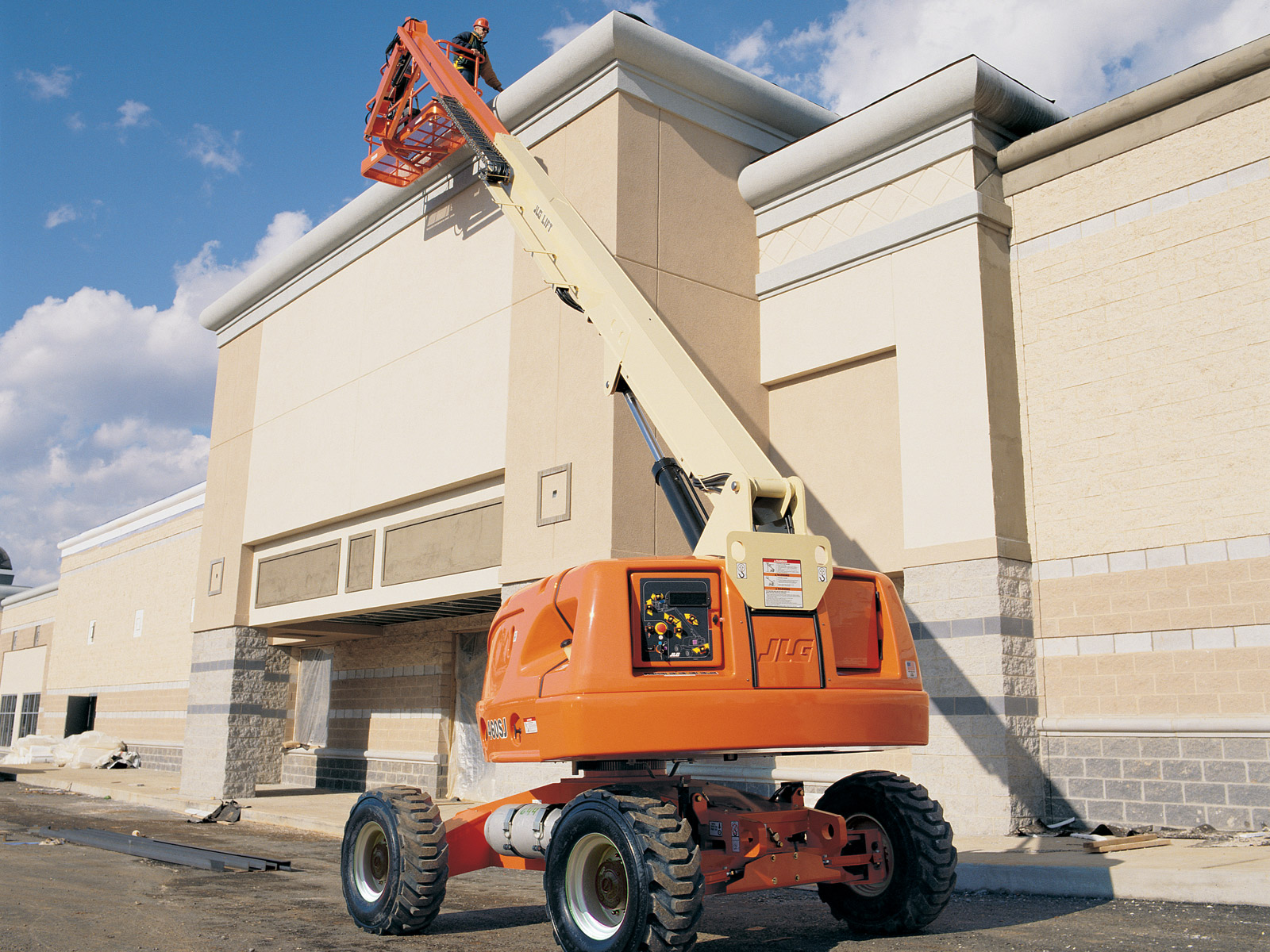

Take your projects to new heights with the JLG 460 SJ – 16 Meter Boom Lift. With a maximum working height of 16.09 meters and an impressive 12.72-meter outreach, this lift is engineered for outstanding performance on rugged terrain and in high-reach applications. Its 360° continuous swing, hydraulic platform rotator, and strong 270kg capacity make it ideal for construction, maintenance, and industrial tasks.
Features
| Brand & Model No | JLG 460 SJ |
| Maximum Working Height | 16.09 m |
| Horizontal Outreach | 12.72 m |
| Swing | 360° Continuous |
| Platform Capacity | 270 kg |
| Platform Rotator | 180° Hydraulic |
| Platform Size | 0.91 m x 1.83 m |
| Overall Width | 2.31 m |
| Tailswing (working) | 0.86 m |
| Stowed Height | 2.47 m |
| Stowed Length | 8.91 m |
| Wheelbase | 2.37 m |
| Ground Clearance | 0.30 m |
| Range of Articulation | +70° / -60° (130° total) |
| Machine Weight | 7,975 kg |
| Max. Ground Bearing Pressure | 4.85 kg/cm² |
| Drive Speed | 7.2 km/h |
| Gradeability | 45% |
| Turning Radius (Inside/Outside) | 2.0 m / 4.84 m |
