20 Meter Boom Lift
20 Meter Boom Lift

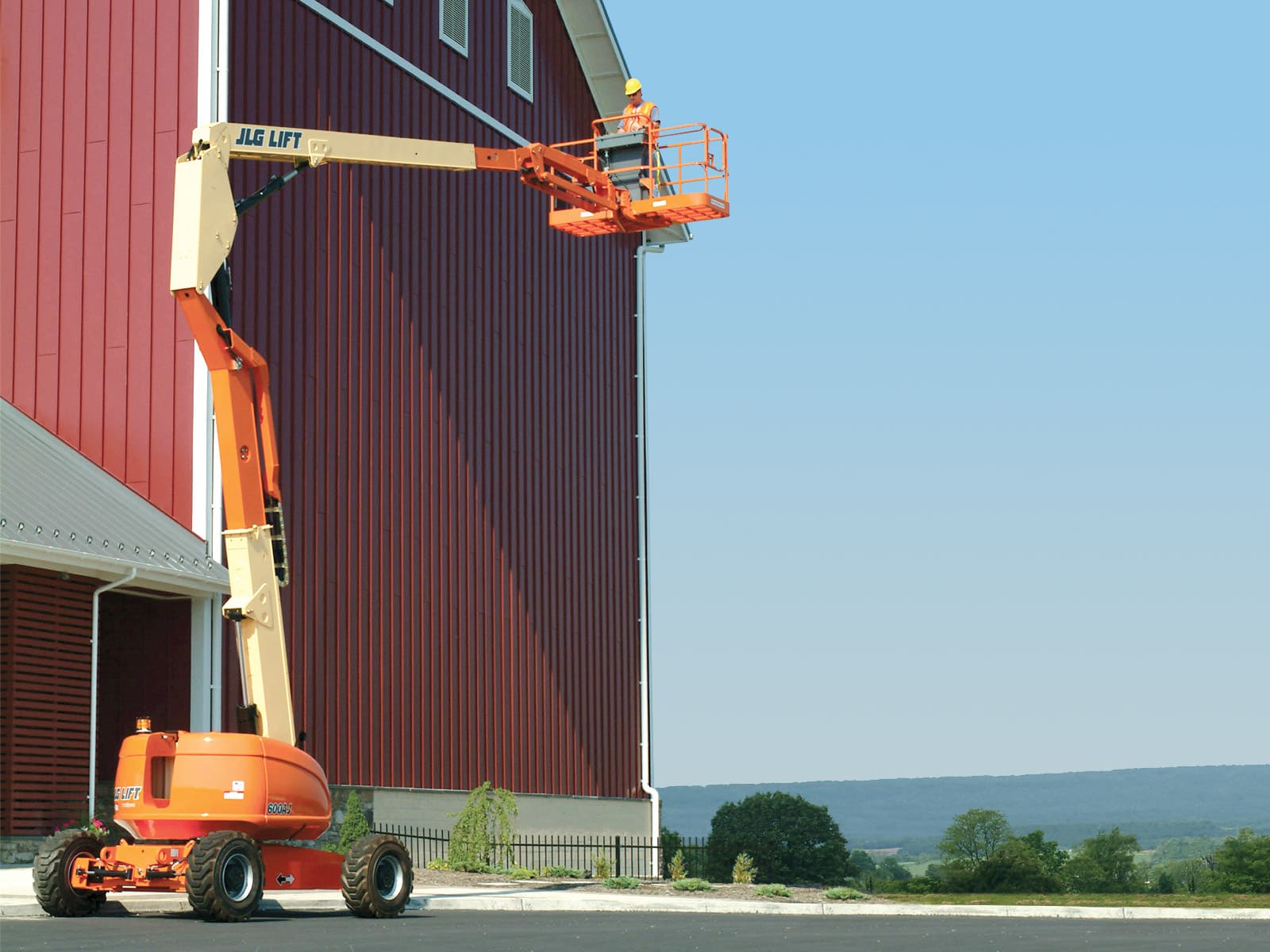

The JLG 600 AJ – 20 Meter Boom Lift is built for superior reach and efficiency. Featuring a working height of 20.46 meters and an outreach of 12.75 meters, it’s perfect for accessing hard-to-reach areas with precision. With a zero tailswing design, 360° continuous swing, and 4WD capability, it offers exceptional maneuverability and productivity on challenging job sites.
Features
| Brand & Model No | JLG 600 AJ |
| Maximum Working Height | 20.46 m |
| Platform Height | 18.46 m |
| Working Outreach | 12.75 m |
| Horizontal Outreach | 12.10 m |
| Up and Over Height | 8.09 m |
| Swing | 360° Continuous |
| Platform Capacity | 230 kg (Unrestricted) |
| Platform Rotator | 180° Hydraulic |
| Jib Length | 1.83 m |
| Jib Articulation | 130° (+70° / -60°) |
| Platform Size | 0.91 m x 1.83 m |
| Overall Width | 2.49 m |
| Tailswing (Working) | Zero |
| Stowed Height | 2.57 m |
| Stowed Length | 8.82 m |
| Wheelbase | 2.48 m |
| Ground Clearance | 0.30 m |
| Machine Weight | 10,660 kg |
| Max. Ground Bearing Pressure | 5.3 kg/cm² |
| Drive Speed (2WD / 4WD) | 6.8 km/h |
| Gradeability (2WD / 4WD) | 30% / 45% |
