28 Meter Boom Lift
28 Meter Boom Lift

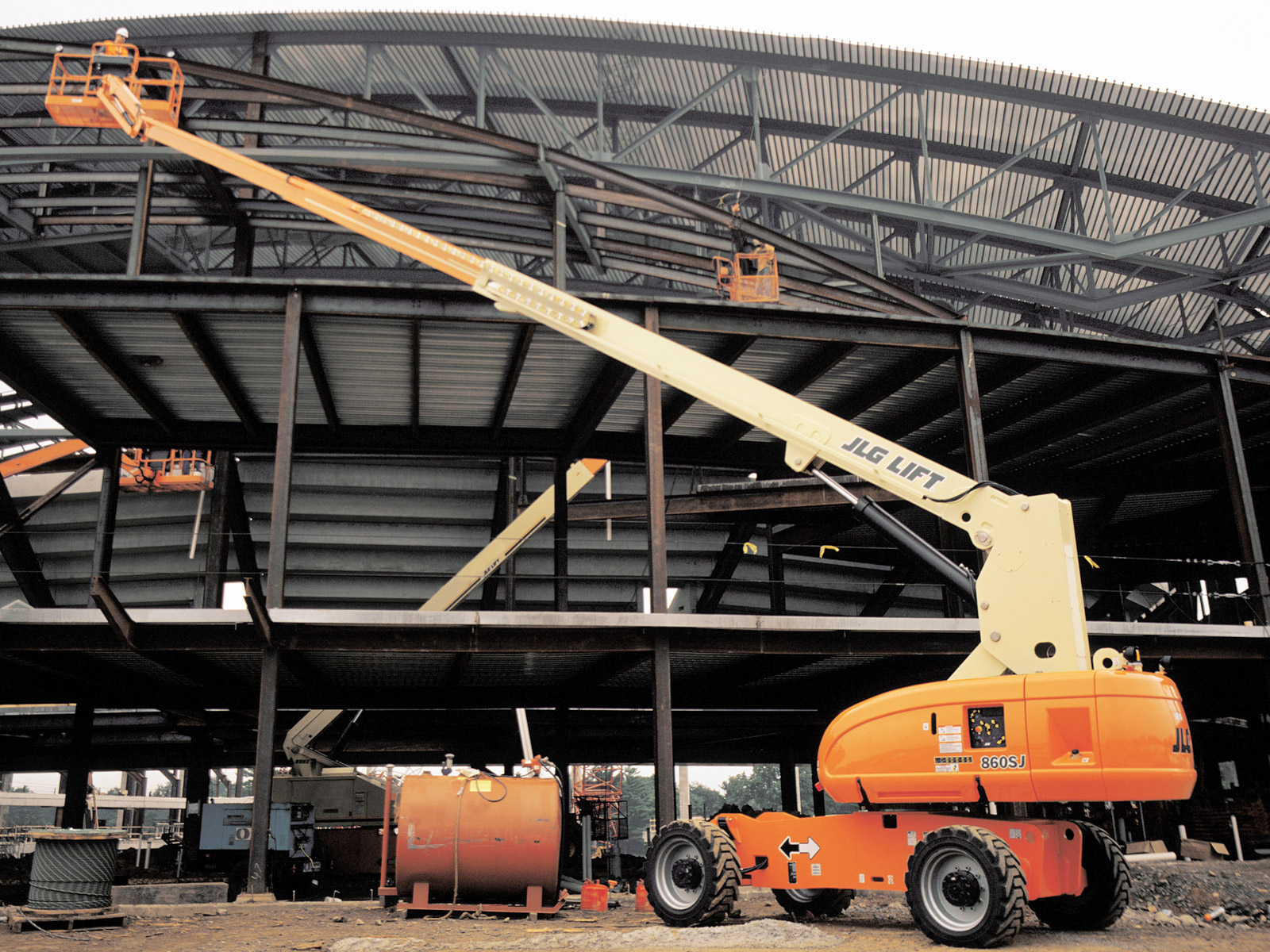

The JLG 860SJ – 28 Meter Boom Lift offers superior outreach and high-performance elevation, reaching up to 28.21 meters in working height. Designed for demanding job sites, it provides unrestricted platform capacity of 230 kg and extended horizontal reach of over 22 meters, making it ideal for industrial, construction, and maintenance applications.
Features
| Brand & Model No | JLG 860SJ |
| Maximum Working Height | 28.21 m |
| Platform Height | 26.21 m |
| Horizontal Outreach | 22.86 m |
| Working Outreach | 23.51 m |
| Platform Capacity (Restricted) | 340 kg |
| Platform Capacity (Unrestricted) | 230 kg |
| Platform Rotator | 180° Hydraulic |
| Jib Length | 1.83 m |
| Jib Articulation | 130° (+70° / -60°) |
| Platform Size | 0.92 m x 2.44 m |
| Stowed Dimensions (L x W x H) | 12.2 m x 2.49 m x 3.05 m |
| Machine Weight | 16,732 kg |
| Max Ground Bearing Pressure | 5.69 kg/cm² |
| Drive Speed | 5.6 km/h (2WD/4WD) |
| Gradeability | 25% (2WD), 45% (4WD) |
| Turning Radius (Inside / Outside) | 3.8 m / 6.02 m (2WS) |
