40 Meter Boom Lift
40 Meter Boom Lift

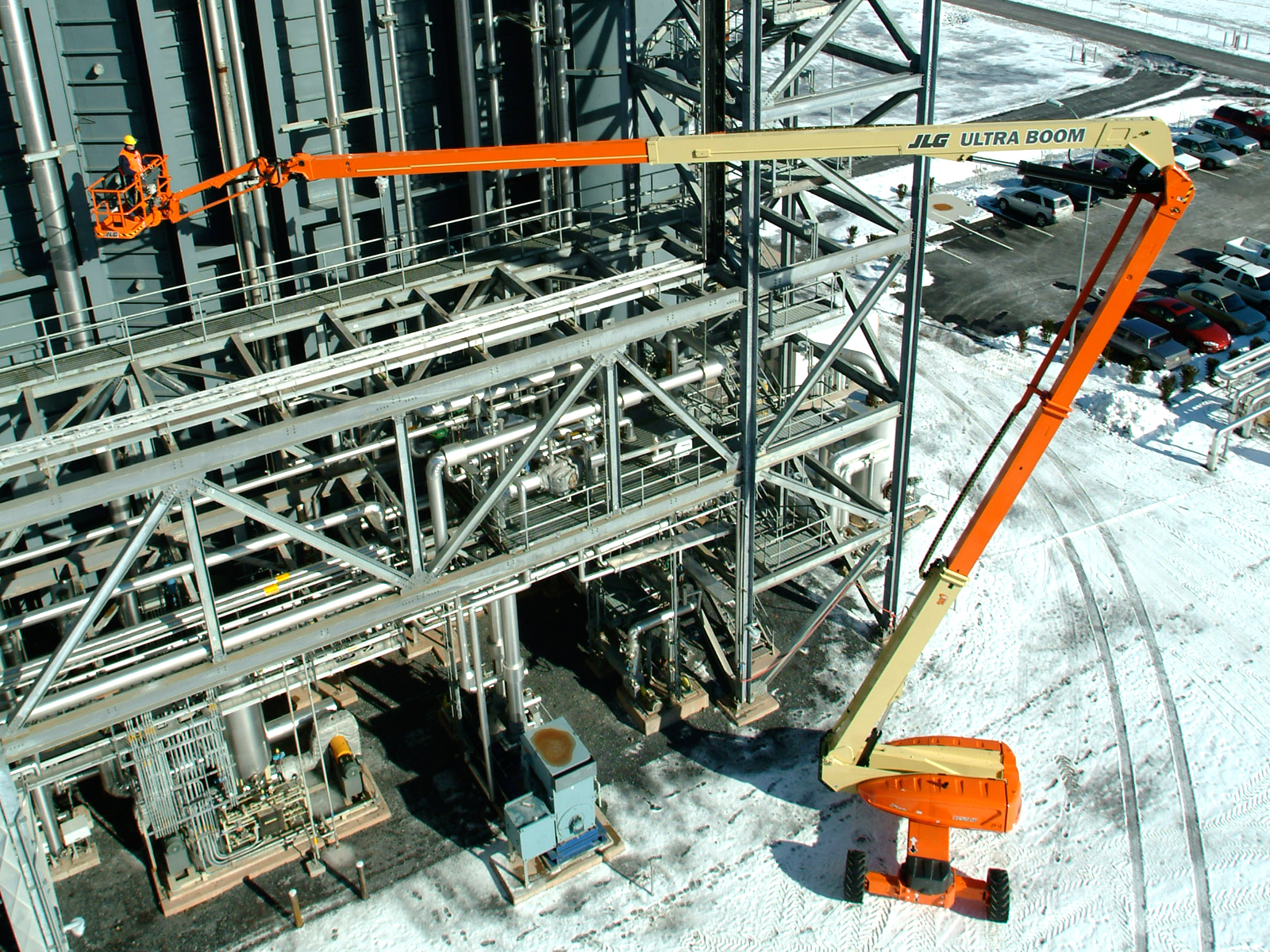

The JLG 1250 AJP – 40 Meter Boom Lift offers exceptional reach and lifting capacity for demanding aerial tasks. With a maximum working height of 40.30 meters and a platform capacity up to 450 kg (restricted), this boom lift combines versatility with strength, ideal for heavy-duty construction, maintenance, and industrial applications.
Features
| Brand & Model No | JLG 1250 AJP |
| Maximum Working Height | 40.30 m |
| Platform Height | 38.30 m |
| Platform Capacity (Restricted) | 450 kg |
| Platform Capacity (Unrestricted) | 230 kg |
| Overall Width (Axles Retracted) | 2.49 m |
| Overall Width (Axles Extended) | 3.81 m |
| Stowed Height | 3.05 m |
| Stowed Length (Transport Position) | 11.46 m |
| Wheelbase | 3.81 m |
| Ground Clearance | 0.30 m |
